When you look at a modern dental chair, you see a sleek piece of clinical furniture designed for patient comfort and ergonomic efficiency. When we look at it, we see a sophisticated intersection of fluid dynamics, mechanical engineering, and: most importantly: high-stakes electrical safety.

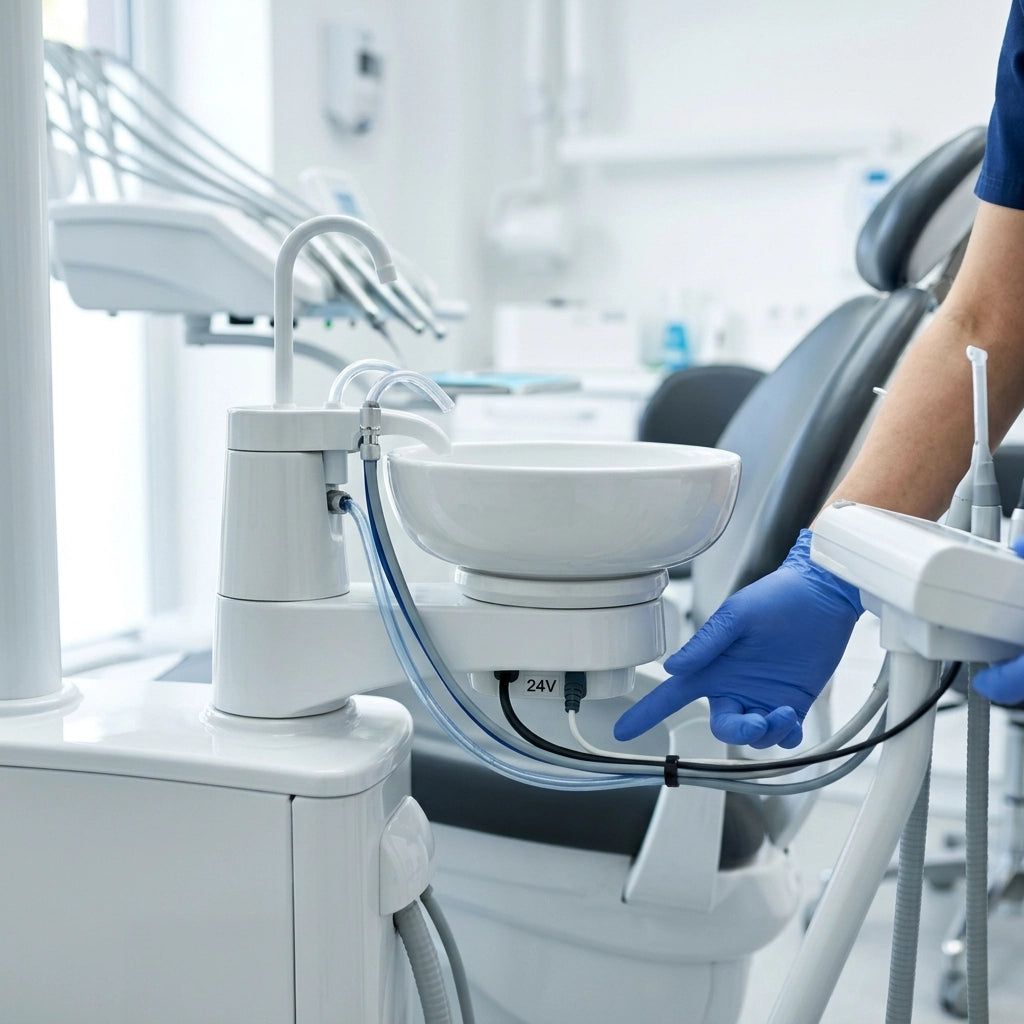

One of the most critical safety features in any dental operatory is something the patient never thinks about: the voltage running through the spittoon. To the untrained eye, a solenoid valve is just a switch. But to a qualified dental engineer, that valve represents a potential bridge between 230V mains electricity and a wet environment.
In this deep dive, we’re going to get into the technical weeds of why your spittoon operates on 24V Safety Extra-Low Voltage (SELV) and why adhering to these strict electrical regulations isn’t just about compliance: it’s about protecting your patients, your staff, and your practice’s bottom line.
The Physics of Risk: Water, Voltage, and the Human Body
In a standard domestic environment, a 230V mains supply is managed with basic insulation and earthing. However, a dental surgery is classified as a "Medical Location." This classification changes everything.
Why? Because in a dental surgery, we are often bypassing the body’s primary natural insulator: dry skin. Whether it’s through mucosal contact in the mouth or the presence of saline and water, the electrical resistance of a patient is significantly lower than that of someone standing in a living room.
The spittoon is the "wet zone" of the dental chair. It involves constant water flow, drainage, and proximity to the patient’s face. If a spittoon valve were powered by 230V mains electricity and a seal failed, the water pathway could become a live conductor. Because the water in the spittoon is connected to the mains drainage and the patient is in contact with the chair (which is earthed), a dielectric breakdown could lead to a lethal electric shock.
By utilizing 24V AC/DC: classified as Safety Extra-Low Voltage (SELV): we eliminate the risk of ventricular fibrillation. Even in the event of a catastrophic component failure where water meets electricity, the potential is simply too low to overcome the body’s impedance and cause a fatal cardiac event.
Decoding the Regulations: BS 7671 Section 710
At SSD Group, we don’t just "fix chairs." We ensure every installation meets the rigorous standards of BS 7671 (The IET Wiring Regulations), specifically Section 710, which covers Medical Locations.
Medical locations are divided into groups (0, 1, and 2) based on the risk to the patient. A dental surgery is typically a Group 1 location, where medical electrical equipment is intended to be used in contact with the patient.
Under these regulations, the isolation of circuits is paramount. The use of SELV for components like spittoon valves, hose manifolds, and suction selection valves is a requirement of IEC 60601-1, the international standard for medical electrical equipment. This standard mandates that any part of the equipment that comes into contact with the patient must have two levels of protection (MOPP: Means of Patient Protection).
Operating the spittoon on a 24V transformer housed safely in the base of the chair or a separate power supply module provides that essential layer of galvanic isolation from the mains grid.
Technical Diagram Placeholder: A cross-section of a dental chair base showing the isolation transformer and the 24V pathway to the spittoon assembly.
Engineering the Solution: The Simple & Smart Approach
When we partner with brands like Simple & Smart, we do so because their engineering aligns with these safety-first principles. Take the SS_ONE or the KISS units, for example. These chairs are designed with a clear separation between high-voltage power intake and the low-voltage clinical delivery system.
Inside a Simple & Smart unit, the mains electricity is stepped down immediately. The solenoids that control your cup fill and bowl rinse are high-quality 24V components. By using 24V, the manufacturer can use smaller, more reliable solenoids that generate less heat and have a longer operational lifespan than their mains-rated counterparts.
Furthermore, the integration of suction systems: the "lungs" of your practice: requires precise electrical management. Whether you are using a wet or dry suction motor, the interface between the chair’s electronics and the suction manifold must be perfectly isolated. We’ve seen DIY "handyman" repairs where 24V signals were crossed with higher voltages, leading to fried motherboards and thousands of pounds in avoidable damage.
The Commercial Reality: Why "Doing it Right" is an Investment
We often hear from practice owners who are frustrated by the cost of specialized dental engineering. However, there is a massive difference between a "repair" and a "compliant engineering solution."
When SSD Group performs an installation or a service, we aren't just looking at whether the water flows. We are checking the integrity of the SELV circuits. We are ensuring that the water pathways are physically separated from any potential electrical arc zones.
1. Preventing Costly Downtime
If a 230V valve fails and shorts, it can trip the entire circuit for the surgery, or worse, the whole practice. Because 24V systems are isolated, a failure in a spittoon solenoid is usually contained. Our team can diagnose a 24V fault in minutes, swap the component, and have you back in surgery before your next patient arrives.
2. Liability and Compliance
In the modern clinical environment, "I didn't know" is not a legal defense. If an inspector or a health and safety officer finds that your equipment has been modified with non-compliant mains-voltage parts, the penalties are severe. By ensuring your spittoon runs on the regulated 24V SELV, you are protecting your professional registration and your business.
3. Equipment Longevity
Water and 230V electricity don't just create a shock hazard; they create accelerated electrolysis and corrosion if there are minor leaks. 24V systems are inherently "kinder" to the mechanical components of the chair. By maintaining the correct voltage levels, we extend the life of your Simple & Smart units, ensuring you get the maximum ROI on your equipment.
Above: A look inside the structure of a Simple & Smart unit, where the segregation of plumbing and electrical lines is meticulously planned to prevent cross-contamination or electrical hazards.
SSD Group: Your Partner in Dental Engineering
We pride ourselves on being more than just equipment movers. We are technical experts who understand the "why" behind the "how." Our team is trained to identify risks that others might miss: like a degraded seal in a spittoon valve that could lead to a slow-motion electrical fault.
When you work with us, you are buying peace of mind. You are ensuring that your SS Dental Services are performed by engineers who respect the physics of the operatory. We know that the safety of your patient is paramount, and that safety starts with the invisible engineering of 24V isolation.
Whether you are looking for a new installation of a Simple & Smart unit or you need a comprehensive compliance check on your existing equipment, we have the expertise to get it done correctly the first time.
Don't gamble with "handyman" solutions for medical-grade equipment. The risks: both physical and financial: are simply too high.
